Timber pedestrian gates

You are here - Page 1 (of 2) Arched headed, Curved headed & Keswick pedestrian gates

Timber pedestrian gates - Page 2 Coniston, Caldbeck & Grasmere pedestrian gates

All timber gates are available in Hardwood (Meranti & Idigbo) and Softwood unless stated otherwise and all pedestrian gates are available made to measure in both height and width. All gates finish at 2 3/4" / 70mm thick.If you have your own design of gate you would like us to take a look at please see our bespoke wooden gate page for how to obtain a costing.

Arched headed pedestrian gates

Pictured right is a semi circular Arched headed timber gate in Meranti.

Specification

Stiles, head, Ex 3'' x 3'' (75mm x 75mm)

Rails, braces Ex 3'' x 2 1/2''
(75mm x 63mm)

T+G  boarding Ex 4'' x 3/4'' (100 x 19mm)

The open boarded Arched headed range specification is the same except the T+G boarding is replaced with Ex 3'' x 3/4'' (75mm x 19mm) infill timber with gaps no greater than 2'' (50mm).

Only available in Meranti and Idigbo (Hardwoods).

Timber gates - Handcrafted hardwood Arched headed gate Wooden pedestrian gates


Curved headed timber gates




Handcrafted curved headed gates

Timber pedestrian gates


Shown right is an Curved headed timber gate in Meranti (hardwood). The Curved headed timber gate is also available in Softwood and Idigbo (Hardwood).

Specification

Stiles, head, Ex 3'' x 3'' (75mm x 75mm) Rails, braces Ex 3'' x 2 1/2'' (75mm x 63mm) T+G  boarding  Ex 4'' x 3/4''
(100 x 19mm)

The Curved headed open boarded gate specification is the same except the T+G boarding is replaced with Ex 3'' x 3/4'' (75mm x 19mm) infill timber with gaps no greater than 2'' (50mm).

The Curved headed gate is also available as a pair of wooden gates

Keswick timber gates

Timber pedestrian gates - The Keswick

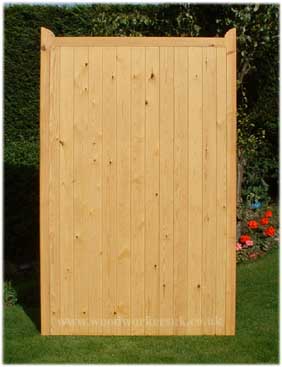

Shown left is a close boarded Keswick timber gate in Softwood.
Also available in Meranit or Idigbo (hardwoods).

Specification

Heads, stiles Ex 3'' x 3'' (75mm x 63mm)Rails, braces Ex 3'' x 2 1/2'' (75mm x 63mm)T+G boards Ex 4'' x 3/4'' (100mm x 19mm)

The Keswick is also available as an open boarded gate,  specification for this is same as the close boarded Keswick except for the T+G boards which in the open boarded Keswick are replaced by Ex 3'' x 3/4'' (75mm x 19mm) infill timbers at gaps no greater than 2'' (50mm).

Also available as a pair of timber driveway gates

If you like either of these gates then please contact us with the sizes you require.
